O'Dive DOPPLER sensor

DECOMPRESSION, MEASURED

O’Dive measures vascular microbubbles after a dive and analyzes dive data to provide objective insight into decompression.

Built on more than ten years of research and the analysis of hundreds of thousands of dives, O’Dive introduces a measurement-based approach that helps inform decompression decisions.

Compatible with the ODYSSEY dive computer, O’Dive forms part of a complete ecosystem enabling divers to move from evaluation to application.

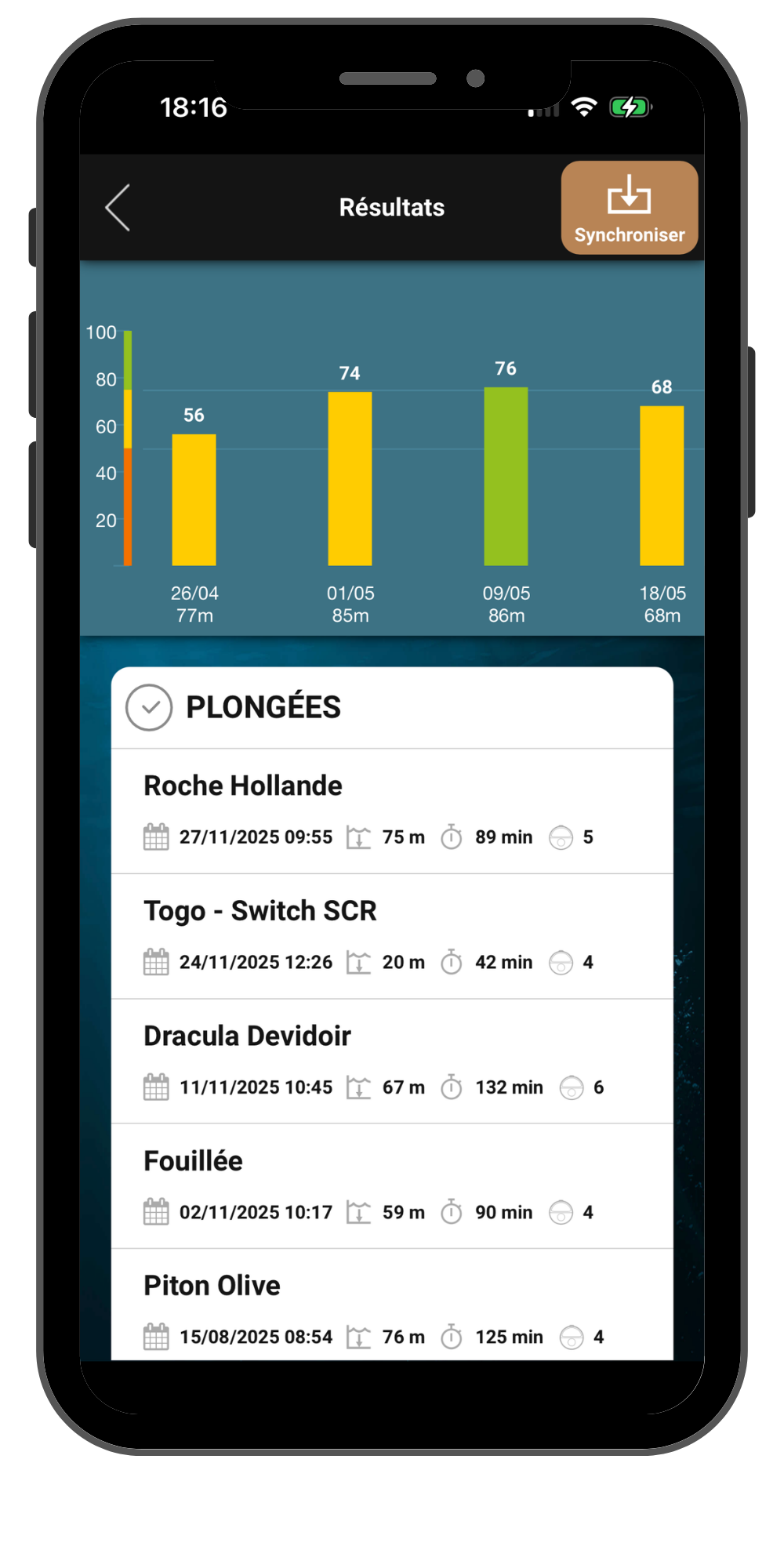

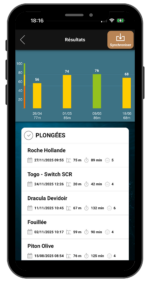

MEASURE AND EVALUATE YOUR DECOMPRESSION

After each dive followed by measurements, the O’Dive application provides a Quality Index (QI) ranging from 0 to 100%.

This index reflects the observed decompression quality, taking into account:

  • Dive profile
  • Ascent profile
  • Breathing gases
  • Detected microbubbles

It allows divers to gain objective insight into their diving practice and assess their decompression on a clear scale.

Odive-MESURER ET ÉVALUER SA DÉCOMPRESSION

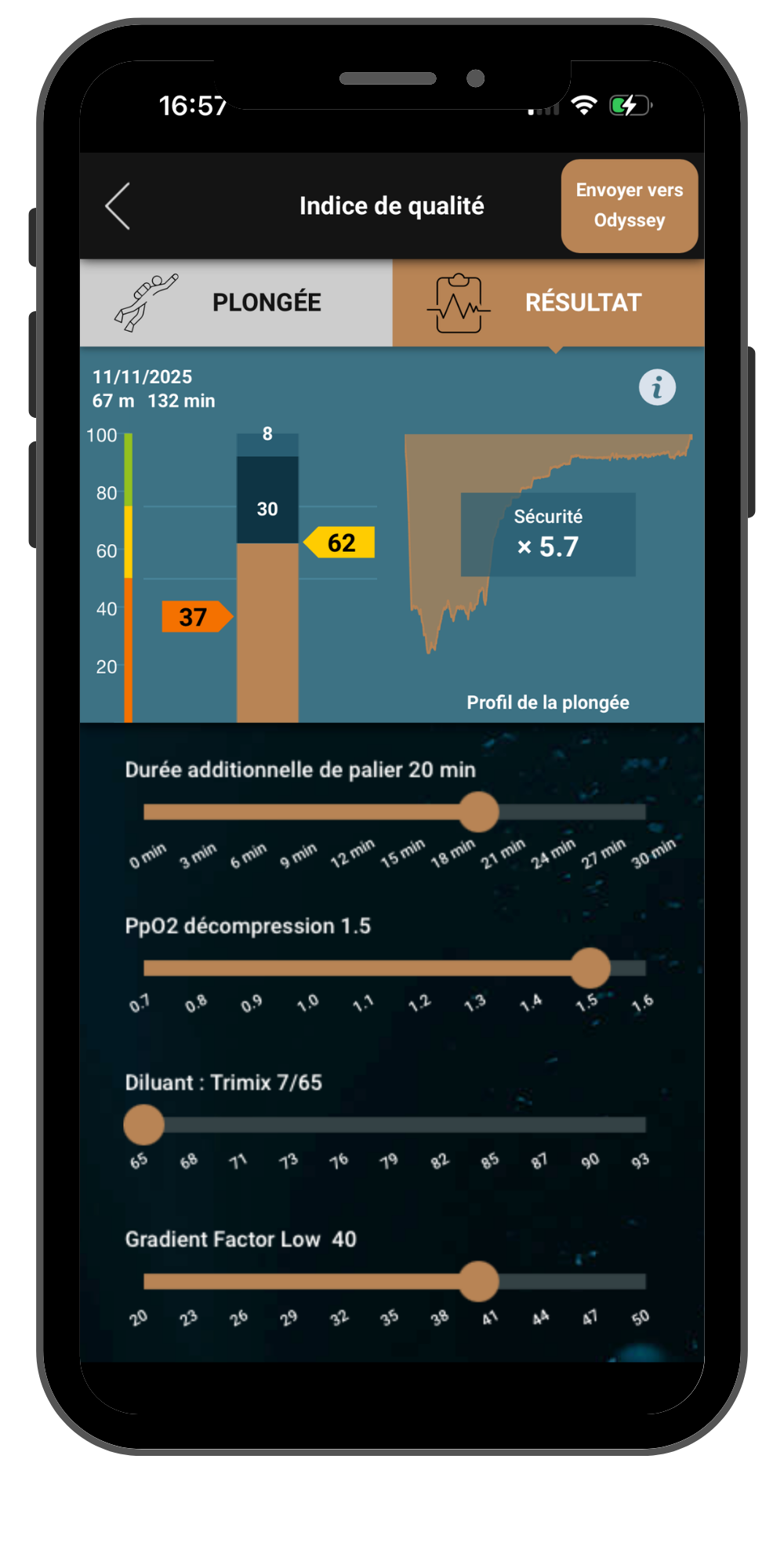

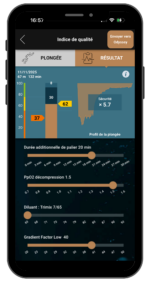

SIMULATE AND COMPARE DECOMPRESSION STRATEGIES

ODIVE-SIMULER ET COMPARER LES CHOIX DE DÉCOMPRESSION

Based on the obtained result, divers can simulate different decompression parameters, such as:

  • Modifying Gradient Factors
  • Adding additional decompression time
  • Using oxygen during decompression
  • Modifying the breathing gases used

The application immediately displays the effect of these changes on:

  • TheQuality Index (IQ)
  • The associatedrelative risk indicator

These simulations help inform the diver’s decisions and enable decompression settings to be adjusted accordingly.

FROM MEASUREMENT TO ACTION, WITH ODYSSEY

When paired with the ODYSSEY dive computer, O’Dive enables a seamless transition from analysis to application.

Divers can:

  • Evaluate their decompression with O’Dive
  • Simulate different settings
  • Select parameters suited to their diving profile
  • Apply them directly in ODYSSEY

This continuity between measurement, analysis and application lies at the heart of the Azoth Systems ecosystem.

Discover ODYSSEY
ODIVE-ODYSSEY

OBJECTIVE PHYSIOLOGICAL MEASUREMENT

ODIVE-UNE MESURE PHYSIOLOGIQUE OBJECTIVE

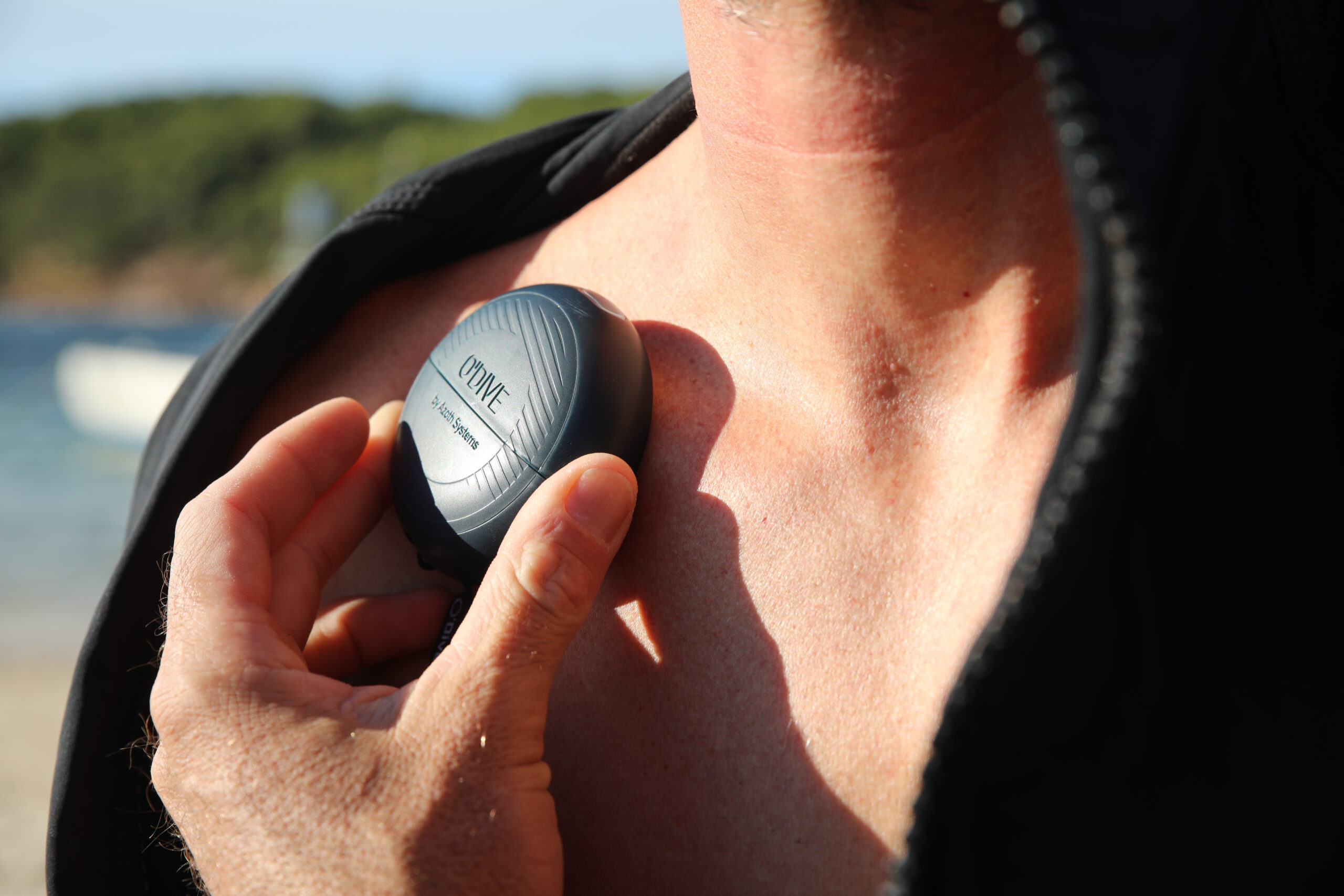

O’Dive measures vascular microbubbles using an ultrasonic Doppler sensor positioned below the clavicle during post-dive measurements.

These measurements are analyzed together with dive profile data to provide an evaluation based on objective data.

COMPATIBLE WITH ALL DIVING CONFIGURATIONS

O’Dive is compatible with :

  • Open circuit : Air, Nitrox, Trimix
  • Closed circuit: Air, Trimix, or Heliox diluent
  • Maximum depth: 125 m

THE AZOTH SYSTEMS ECOSYSTEM

O’Dive and ODYSSEY form an integrated ecosystem of instruments and analytical software built on measurement and analysis.

Together, they enable divers to better understand their diving exposure and manage their decompression.

DESIGNED AND DEVELOPED BY AZOTH SYSTEMS

O’Dive is designed and developed by Azoth Systems, a manufacturer of instruments and analytical software dedicated to understanding and managing underwater diving.

Its development builds on over ten years of research, including doctoral research, scientific publications, and patented innovations.

technical features

Open circuit

0-60m Air/Nitrox

0-125m Trimix/Heliox

CCR

0-45 Air

0-125m Trimix/Heliox

AVAILABILITY AND RECOMMENDED RETAIL PRICE

O’Dive is available as a standalone system or as part of a package within the Azoth Systems ecosystem.

O’Dive system (2 users) : €850 incl. VAT

ODYSSEY + O’Dive package (2 users) : €1,600 incl. VAT

Integrated dive computer and Doppler-based decompression analysis system.
